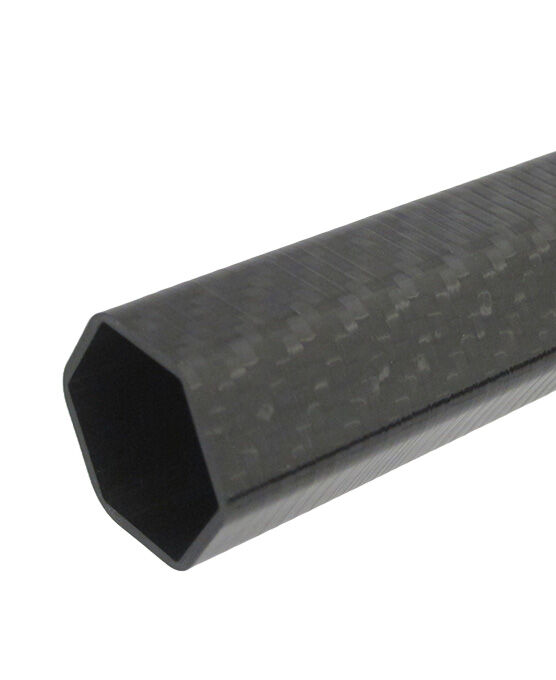

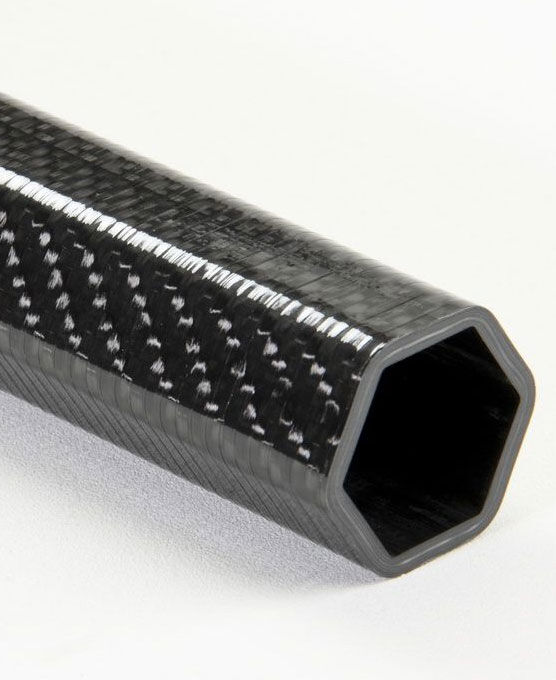

TUBE - HEXAGON - 1.00 X 1.10 X 1.968 IN (5 CM LENGTH)
$6.36
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
Hexagonal cross section tubing offers fabricators and designers alike the ease of affixing motors, accessories and machined features since there is always a flat surface to work with. Offered in a variety of diameters and wall thicknesses one is bound to find a product that will suit your application. And of course, if you don't see what you need, let us know. We can likely build it.
Additional Information
| P/N | 25600-5CM |
|---|---|
| Application | General Purpose |
| Finish | Cello Wrap Gloss |
| Height | 1.115 |
| Length | 1.968 |
| Major ID | 1.0 |
| Major OD | 1.0 |
| Materials | Standard Modulus Carbon |
| Minor ID | 1.0 |
| Minor OD | 1.0 |
| Shape | Hexagonal |
| Wall Thickness | 0.055 |
| Weight | 0.022 |
Technical Specifications
Radius of Tubing
The inner and external corner radii are measured by hand with a radius gauge with no tolerance called out.- Internal Radius: 1/64”
- External Radius: 13/64”.
We cannot supply theoretical values for this tube at this time. For specification sheets and other data we can supply please review our Technical Spec page.
Layup Orientation
|
SKU: 25600 Rev D |
||
| Ply # | Orientation | Location |
| 1 | 0 | Inside |
| 2 | 0 | ↓ |
| 3 | 45 | |
| 4 | -45 | |
| 5 | 45 | |
| 6 | -45 | |
| 7 | 0/90 | Outside |
- 0° Fibers maximize bending stiffness. Consider bending the tube over your knee.
- 45° Fibers maximize torsional stiffness. Typically plied together in an opposing manner, i.e. ±45°. Consider twisting the tube like a vehicle's driveshaft.
- 90° Fibers maximize crushing stiffness and generally assist in overall tube strength. Consider laying the tube on the ground and stepping on it.
