Tube - Fabric - Sanded - 0.938 X 1.000 X 36 IN
$107.99
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
Manufactured using multiple layers of prepreg carbon fiber. Each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plies) allows us to vary the orientation of the fibers throughout the thickness, creating an engineered high performance product.
Additional Information
| Materials | Standard Modulus Carbon |
|---|---|
| Pattern | 3k 2X2 Twill Weave |
| Finish | Sanded Smooth Matte |

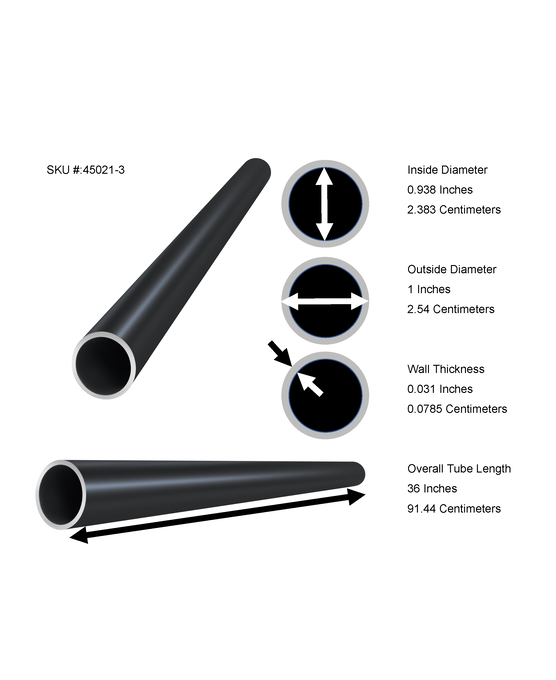

| Inside Diameter | 0.94 |
| Outside Diameter | 1.0 |
| Thickness | 0.06 |
| Wall Thickness | 0.06 |
| Length | 36 |
| Length (max continuous) | 36.0 |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
Layup Orientation
45021-3 Rev A
| Ply # | Orientation (degrees) | Location |
|---|---|---|
| 1 | 0 | Inside |
| 2 | 0 | ↓ |
| 3 | 90 | |
| 4 | 90 | |
| 5 | 0/90 | Outside |
- 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
- 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
- 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
