Tube - Round - INFINITubeV - High Modulus - Plain Weave - Size 00 - 0.250 X 0.352 X 62 Inch
62” ◾ 1575mm
1
-
9
$106.99
10
-
49
$96.79
50
-
99
$88.59
100
+
$82.39
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.
Our high modulus carbon fiber tube is 50% stiffer than standard carbon fiber tubes. High modulus carbon fiber provides excellent thermal conductivity and stability. Our high modulus tubes typically employ 0° & 90° plies throughout the ply sequence / laminate orientation.
INFINITubeV high modulus tubing is manufactured for use with button clips, push button ball lock pins or you can design your own.
INFINITubeV High Modulus Tubing Quick Facts
- Very stiff - Good thermal conductivity / stability.
- Gloss finish, can be sanded to remove gloss. Option available in customization box.
- Huge diameter range so you can hop on or off anywhere in the spectrum.
- Use UHMW low friction tape to maintain snug fit.
- UHMW tape can be used to prevent tubes from pulling apart at full extension
- All INFINITubeV tubes (part #'s 464xx) have an ultra thin woven fiberglass inner layer to maintain superior machine-ability for hole drilling (if using button clips or locking pins) or slot cutting
- Great for machining - Fabric inner and outer plies minimize "breakout" typically associated with drilling into composites
Learn about our Roll Wrapping Process.
Features & Benefits
Example of INFINITubeV Size 00 & Size 01
- (A): INFINITubeV Size 00
- (B): INFINITubeV Size 01
- (C): Two layers of low friction tape 8950-12
How to Build Your Own Telescoping System
Additional Information
| Telescoping Tube Family | INFINITubeV - Design Your Own |
|---|---|
| Shape | Round |
| Materials | High Modulus Carbon |
| Pattern | 1k Plain Weave |
| Color | Black |
| Finish | Cello Wrap Gloss |

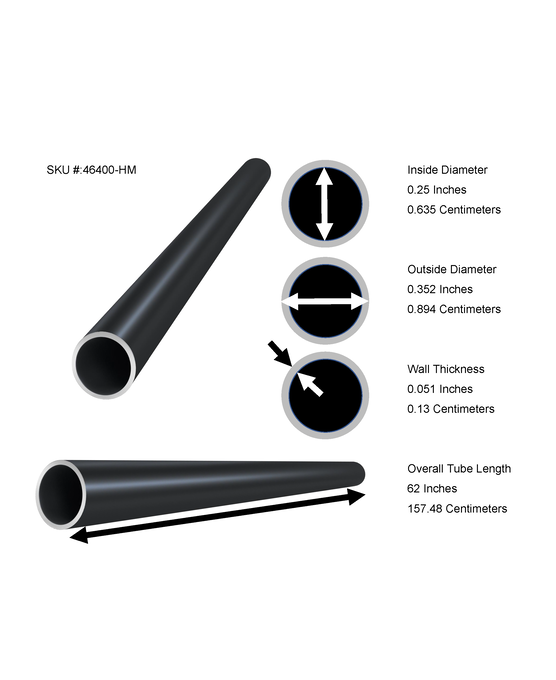

| Inside Diameter | 0.25 |
| Outside Diameter | 0.352 |
| Wall Thickness | 0.051 |
| Length | 62 |
| Length (max continuous) | 62.0 |
| Linear Density | 0.033 |
| Volumetric Density | 0.057 |
| Weight | 0.17 |
| Primary Fiber | Toray M40J |
| Primary Resin / Hardener | Eporite EHM82 |
| HTS - Harmonized Tariff Code | 6815.13.0000 |
Engineering Properties
All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.
| Avg EX Young's Modulus | 1.894E7 |
|---|---|
| Avg EY Young's Modulus | 7476000.0 |
| GXY Shear Modulus | 1163000.0 |
| X Tensile Yield Strength | 124200.0 |
| X Compressive Yield Strength | 103900.0 |
| Y Tensile Yield Strength | 42840.0 |
| Y Compressive Yield Strength | 49950.0 |
| XY Shear Strength | 10600.0 |
| CTEX | 4.89E-07 |
| CTEY | 2.44E-06 |
| Poisson's Ratio vXY | 0.044 |
| Poisson's Ratio vYX | 0.017 |
Note:
- "X" is along the length of a tube, rod, plate, or panel.
- "Y" is around the perimeter of a tube, perpendicular to the length of pultruded parts, or along the width of a plate or panel.
Calculators
All laminate properties and mechanical calculations are based on Classical Lamination Theory and should be used as a reference only. Rock West Composites does not guarantee these properties or calculations.
Layup Orientation
46400-HM Rev B
| Ply # | Orientation (degrees) | Location |
|---|---|---|
| 1 | (0/90 120 E-Glass Scrim) | Inside |
| 2 | 90 | ↓ |
| 3 | 90 | |
| 4 | 0 | |
| 5 | 0 | |
| 6 | 0 | |
| 7 | 0 | |
| 8 | 0/90 | Outside |
- 0° fibers maximize bending stiffness and run along the length of the part. Consider bending a tube over your knee.
- 45° fibers maximize torsional stiffness and are typically plied together in an opposing manner, i.e. ±45°. Consider twisting a tube like a vehicle's driveshaft.
- 90° (or "hoop") fibers maximize crushing stiffness and generally assist in overall durability. Consider laying a tube on the ground and stepping on it.
