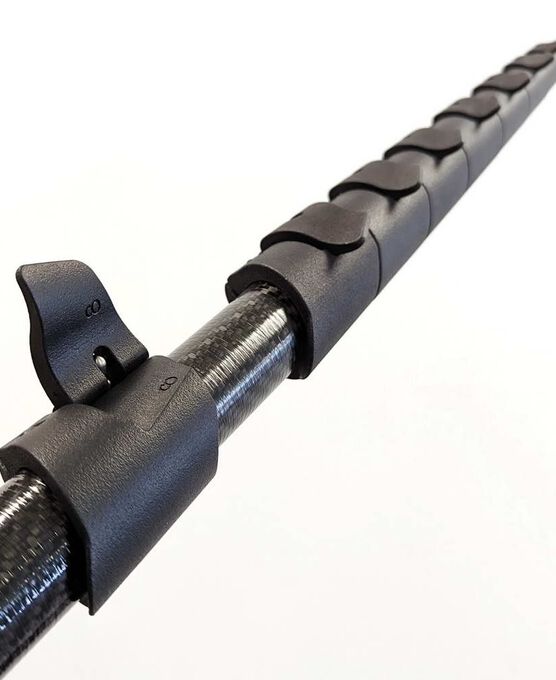

INFINITubeV - SM - 9pc (46402 through 46410) Fully Assembled - Smallest Tube ID 0.50" Biggest Tube ID 1.50"- 49" Collapsed to 360" Extended
Compression Ring Clamps ◾9 section telescoping◾ 360" Expansion ◾49" Contracted
1
$2,299.99
2
-
4
$1,985.79
5
-
9
$1,820.59
10
+
$1,626.39
Estimated lead time for quantities greater than what is Available Now is expected to be at least 4 weeks.
The benefits of the INFINITubeV series telescoping tubing include a huge diameter range—0.25" to 4.000"—so you can hop on or off anywhere in the spectrum. It's compatible for use with 7mil thick UHMW low friction tape to maintain snug fit and ensure long life by reducing friction. You can use the same tape above to limit tubes from pulling apart at full extension and to prescribe max extension. Plus they come with a glass scrim liner.
Additional Information
| Telescoping Tube Family | INFINITube Fully Assembled |
|---|---|
| Shape | Round |
| Materials | Standard Modulus Carbon |
| Pattern | 3k 2X2 Twill Weave |
| Finish | Cello Wrap Gloss |
| Thickness | 0.05 |
| Wall Thickness | 0.5 |
| Length | 49 |
| Length (max continuous) | 360.0 |
| Collapsed Length (Telescoping Tubing) | 49 |
| Extended Length (Telescoping Tubing) | 360 |
| Weight | 1.0 |
| Temperature Rating (F) | 180.0 |
| Max Operating Temp- (Tg) | 175F to 199F |
