Carbon Reinforced Plate / Block - Carbon/PEEK - 11 x 11 x 1.00" / 25.4mm thick- BLOWOUT

Click to view and choose plate sizes

Please call for availability

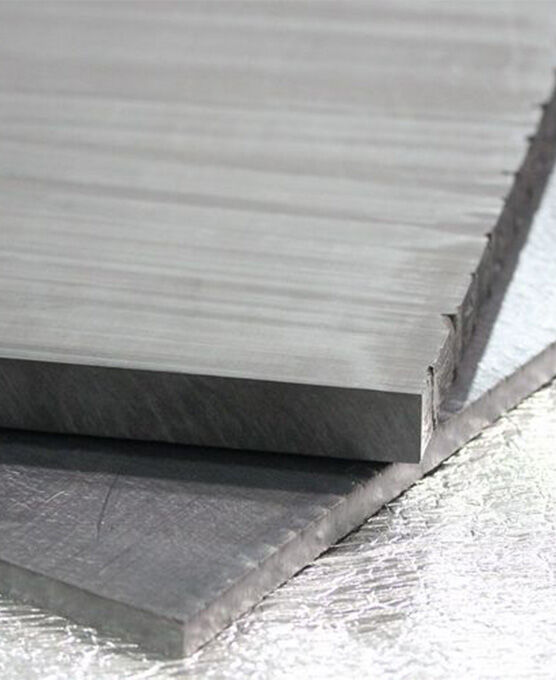

PEEK CF30 Block - 11" x 11" x 1.00" thick or 304mm x 292.1mm x 25.4mm

PEEK CF30, 30% Carbon Fiber reinforced PEEK improves the compressive strength, stiffnessand load carrying capacity of PEEK,. It enhances load carrying capacity . This material provides significantly higher thermal conductivity than unreinforced PEEK and as a result and reduces its thermal expansion rate. It offers the highest chemical resistance of any semi-crystalline plastic with excellent retention of mechanical properties up to 570°F (300°C). PEEK offers a combination of superlative properties that allow it to replace metal in some of the most severe end-use environments.

Key Features Include:

• Exceptional chemical resistance to organics, acids and bases
• High mechanical strength in excess of 250°C (482°F)
• Very good wear and abrasion resistance
• Low CLTE and high limiting PV properties
• Excellent resistance to hydrolysis in boiling water and superheated steam
• Superior dielectric with low loss at high temperatures and frequencies
• Ease of processing
• High purity

Typical Applications:

• Aircraft Hardware and fasteners
• Aircraft mechanical components
• Oil and gas processing equipment
• Bearing retainers
• Gears
• Bushings
• Seals
• Thrust washers
