Resin Trap Vacuum Chamber - 2 gallon
$209.99
Estimated lead time for quantities greater than what is Available Now is expected to be between 2 and 4 weeks.
If there is an Available Now quantity listed above, it indicates our quantity in stock. Orders placed today for this quantity or less are expected to ship the next business day.

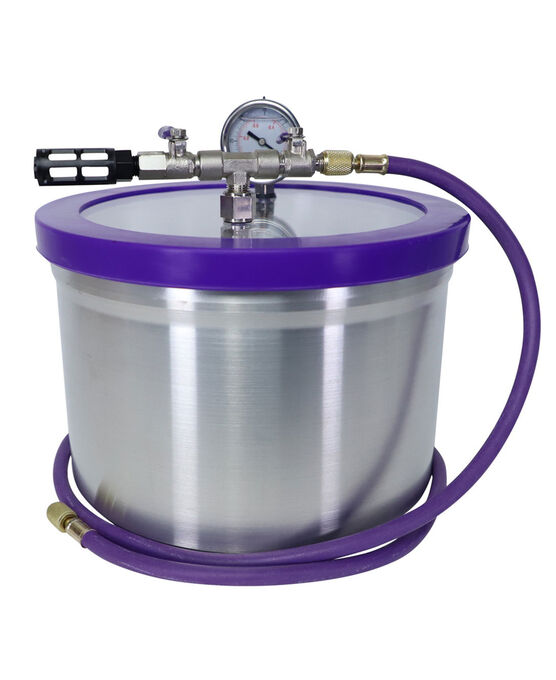

2 Gallon Resin Trap Vacuum Chamber
Designed for efficiency, this chamber ensures an air-tight environment, enabling optimal resin flow, uniform distribution, and easy clean-up. Experience the art of carbon fiber infusion at its finest.
Key Features:
- Reversable rubber gasket
- Reliable vacuum, capable of maintaining 2.5Hg / 24 hrs.
- For use in the infusion process to trap resins before they are introduced into your vacuum system
- Can be used as a vacuum chamber for de-gassing resins
- Acrylic Lid
Additional Information
| Length | 0 |
|---|---|
| Weight | 8.0 |
Technical Specifications
| Chamber Material | 3004 Aluminum |
| Gasket Material | Silicone |
| Lid Material | Acrylic |
| Internal Dimensions (ID) | 6.5" Tall x 10" Diameter |
| Vacuum Gauge (Glycerin Filled) | InHG (0)-(-30) |
| Manifold Connections | 1/4" SAE and 1/4" FNPT |
| Temperature Rating | 150°F (65°C) |
| Additional Included Items |
|
